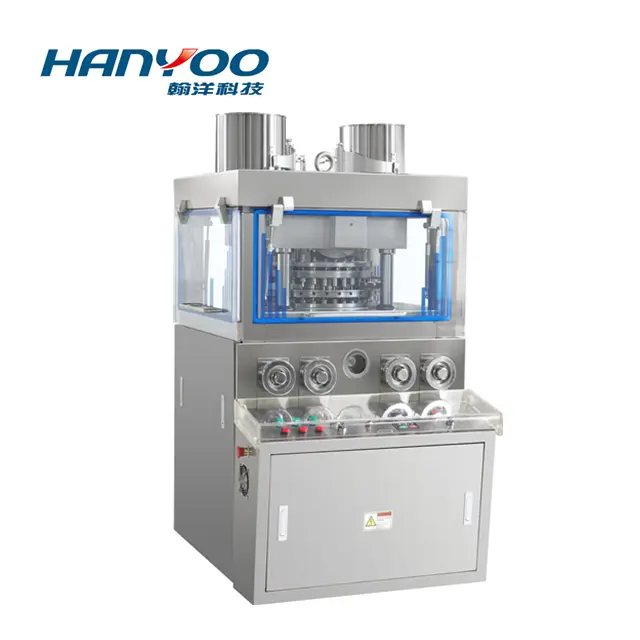

ZPW-420-27 Automatic Rotary Tablet Press Machine
The ZPW-420-27 is a precision-engineered rotary tablet press designed for high-efficiency mass production of round and irregular tablets. Featuring 27 stations, it offers balanced output and superior pressure control, making it ideal for pharmaceutical, food, and chemical industries requiring large batch processing with consistent quality.
- High Production Efficiency (Up to 90,000 tablets/h)
- GMP Compliant SS304/SS316 Structure
- 27 Punch Stations for Smooth Operation
- Dual Pressure System with Pre-compression
- Intelligent PLC & Touch Screen Interface
Product Description
The ZPW-420-27 Automatic Rotary Tablet Press Machine is a continuous automatic tablet press that presses granular raw materials into tablets. It is the preferred equipment for large-scale production of tablets in pharmaceutical, chemical, and food enterprises.
This model is equipped with a high-strength frame and a fully enclosed compression chamber. The transparent windows provide 360-degree visibility while preventing dust cross-contamination. Every component that contacts the material is made of high-grade stainless steel to ensure safety and longevity.
Main Features
- Optimized 27 Stations: Offers a high throughput of up to 90,000 tablets per hour while maintaining mechanical stability.
- Pre-pressure Function: Includes a pre-compression step to exhaust air from the powder, significantly reducing tablet capping and increasing hardness.
- Advanced Lubrication: Automatic lubrication system ensures long-term operation of the punch rods and tracks, extending the machine's lifespan.
- PLC Control: Real-time monitoring of pressure and production data via a high-definition touch screen.
- Safety Guards: Includes overload protection, emergency stop, and sensor-monitored safety doors.
Technical Parameters
| Technical Parameters | ZPW-420-27 Specifications |
|---|---|
| Number of Dies (Stations) | 27 |
| Max. Pressure (KN) | 80 |
| Max. Pre-pressure (KN) | 20 |
| Max. Dia. of Tablet (mm) | 25 |
| Max. Filling Depth (mm) | 15 |
| Production Capacity (pcs/h) | 35,000 - 90,000 |
| Main Motor Power (kW) | 5.5 |
| Overall Dimension (mm) | 1240 × 1240 × 1850 |
Applications
The ZPW-420-27 is versatile enough to handle various materials:
- Pharmaceuticals: Standard medicine tablets, chewable tablets, and multi-vitamins.
- Food Industry: Candy tablets, milk tablets, flavoring blocks, and bouillon cubes.
- Chemicals: Laundry detergent blocks, mothballs, and agricultural fertilizer tablets.
Customization Service
At Hanyoo, we offer bespoke customization for the ZPW-420-27 to align with your specific production goals and GMP environment.
Mold & Tooling
Specialized punch designs for round, irregular, deep-concave, or logo-engraved tablets to enhance your brand.
Layout & Integration
System integration with dust collectors, tablet dedusters, and metal detectors for a full production line.
Voltage & Power
Custom electrical configurations to meet global standards (220V/380V/415V, 50/60Hz).
GMP Documentation
Provision of complete validation packages including DQ, IQ, OQ, PQ and material traceability reports.
