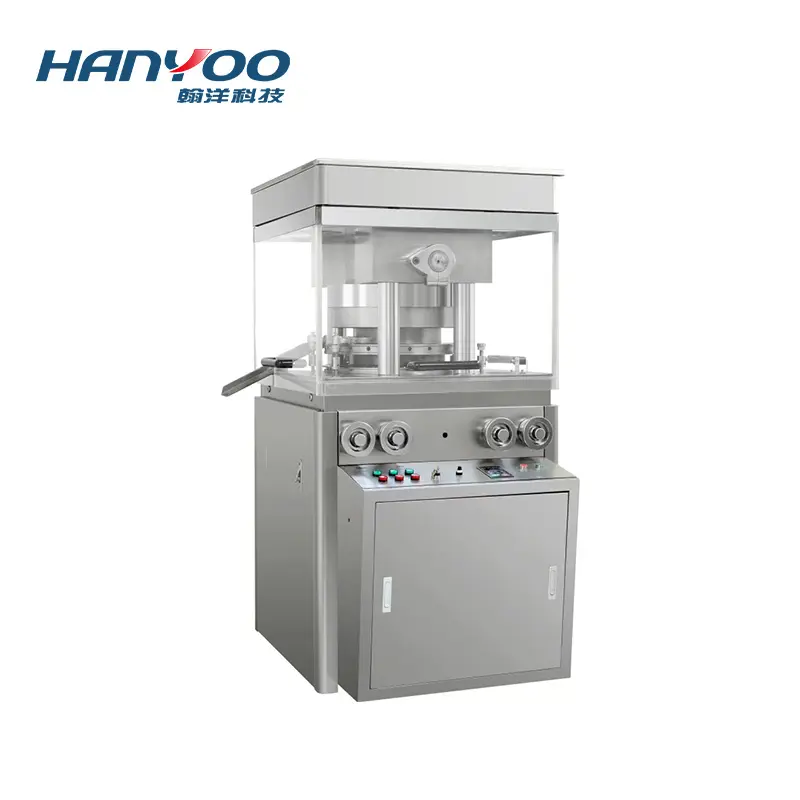

ZPW-420-15 Automatic Rotary Tablet Press Machine
The ZPW-420-15 is a high-pressure, large-diameter rotary tablet press designed for specialized industrial and pharmaceutical applications. It is engineered to press granular materials into large round or irregular tablets, such as effervescent tablets and large seasoning blocks, with high precision and weight uniformity.
- High Pressure for Large Tablet Production
- Fully Enclosed Structure (GMP Standard)
- 15 Stations for Precision Compression
- Advanced PLC Touch Screen Control
- Adjustable Speed and Tablet Thickness
Product Description
The ZPW-420-15 Automatic Rotary Tablet Press Machine is a robust and versatile solution for medium-scale production of large tablets. It features a heavy-duty frame designed to handle the high pressures required for large-diameter compressions. The machine is constructed from high-quality stainless steel, ensuring durability and ease of cleaning.
The entire pressing area is fully enclosed with transparent guards, providing a dust-free environment and ensuring operator safety. It operates continuously and automatically, providing high efficiency while maintaining strict adherence to GMP requirements.
Main Features
- Superior Compression: Specifically designed to handle high-pressure tasks, ensuring high hardness in large tablets.
- GMP Compliance: All parts in contact with materials are made of SS316L/SS304, and the machine structure is easy to sanitize.
- Intelligent Control: Integrated PLC system with a user-friendly touch interface for precise adjustment of filling depth, pressure, and speed.
- Safety Features: Equipped with an automatic overload protection device and emergency stop buttons.
- Versatility: Suitable for producing round tablets, irregular shapes, and engraved tablets by changing the mold.
Technical Parameters
| Model | Number of Dies | Max Pressure (KN) | Max Tablet Dia. (mm) | Max Filling Depth (mm) | Max Capacity (pcs/h) | Motor Power (kW) |
|---|---|---|---|---|---|---|
| ZPW-420-15 | 15 | 80 | 30 | 15 | 30,000 | 5.5 |
Applications
The ZPW-420-15 is ideal for the following industries:
- Pharmaceutical: Large vitamins, effervescent tablets, and traditional medicinal tablets.
- Food Industry: Chicken bouillon blocks, seasoning blocks, candy, and health supplement tablets.
- Chemical Industry: Disinfectant tablets, chlorine tablets, laundry detergent blocks, and camphor balls.
- Other: Specialized powder compression for metallurgical or ceramic components.
Customization Service
At Hanyoo, we provide comprehensive customization services to ensure the ZPW-420-15 perfectly fits your specific production requirements and facility layout.
Mold & Tooling
Customized punch and die designs for large-diameter, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
