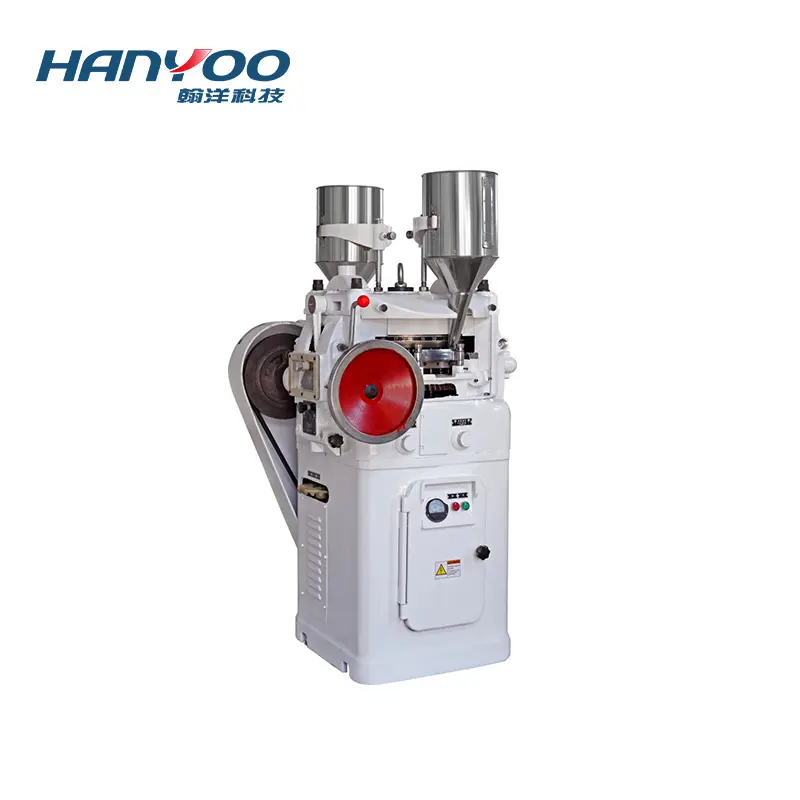

ZP-33 Automatic Rotary Tablet Press Machine
The ZP-33 is a double-pressure automatic rotary tablet press, designed for high-capacity production of round and shaped tablets. Widely utilized in pharmaceutical, food, chemical, and electronics industries, it ensures consistent tablet quality with a fully enclosed GMP-compliant structure.
- Double-Pressure System (Pre-pressing & Main)
- High Output (Up to 110,000 tablets/h)
- Stainless Steel & Plexiglass Enclosure
- PLC Control & Frequency Speed Regulation
- Overload Protection & Emergency Stop
Product Description
The ZP-33 series is an advanced rotary tablet press that compresses granular materials into various tablet shapes. Its "Double Pressure" structure includes two sets of feeding devices and two sets of pressure rollers, allowing for higher density and uniform weight distribution in mass production.
The entire machine is housed in a polished stainless steel casing with transparent plexiglass windows, allowing operators to monitor the tableting process clearly. A built-in dust collection system sucks away excess powder through the suction nozzle, preventing cross-contamination and facilitating material recycling.
Main Features
- GMP Compliance: All contact parts and the outer casing are made of high-quality stainless steel, ensuring a hygienic production environment.
- Safety & Protection: Features a mechanical buffer device and overload protection that automatically stops the machine if pressure exceeds limits.
- Precision Control: Equipped with frequency conversion for stable speed adjustment and an optional touch-screen PLC for digital parameter management.
- Ease of Maintenance: Side panels are fully removable for easy internal cleaning. The transmission system is sealed in an oil box beneath the main unit to reduce noise and wear.
- Versatile Application: Capable of producing round, irregular, and engraved tablets by simply changing the punch dies.
Technical Parameters
| Technical Item | ZP-33 | ZP-35 | ZP-37 |
|---|---|---|---|
| Number of Dies (Sets) | 33 | 35 | 37 |
| Max Pressure (kN) | 40 / 60 | 40 / 60 | 40 / 60 |
| Max Tablet Diameter (mm) | 12 | 12 | 11 |
| Max Filling Depth (mm) | 15 | 15 | 15 |
| Max Tablet Thickness (mm) | 6 | 6 | 6 |
| Turret Speed (r/min) | 11-28 | 11-28 | 11-28 |
| Production Capacity (pcs/h) | 43,000 - 110,000 | 46,000 - 117,000 | 48,000 - 124,000 |
| Motor Power (kW) | 2.2 | 2.2 | 2.2 |
| Overall Dimensions (mm) | 950×960×1600 | 950×960×1600 | 950×960×1600 |
Applications
The ZP-33 Automatic Rotary Tablet Press is widely applicable for:
- Pharmaceuticals: Western medicine tablets, herbal tablets, effervescent tablets, and chewables.
- Food Industry: Milk tablets, candy mints, chocolate tablets, and health supplements.
- Chemical Industry: Detergent tablets, laundry pods, camphor balls, and pesticide granules.
- Industrial: Catalysts, metallurgy powder, ceramic parts, and battery components.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the ZP-33 Tablet Press perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
