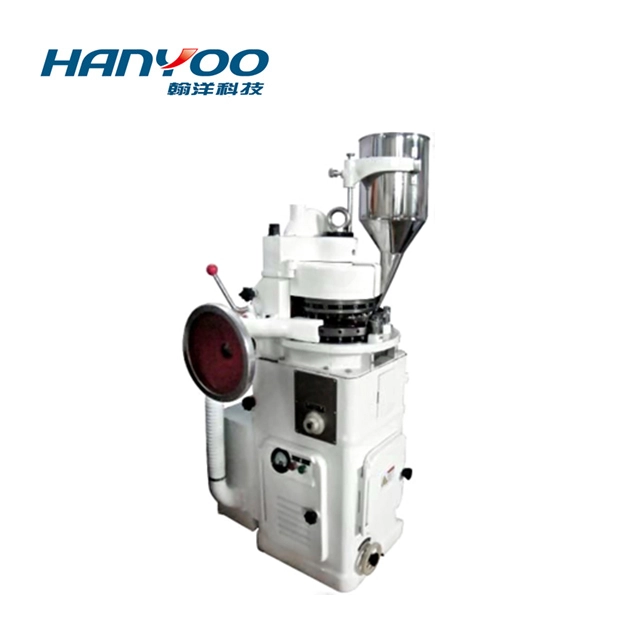

ZP-17 Automatic Rotary Tablet Press Machine
The ZP-17 Automatic Rotary Tablet Press is a small-scale, versatile machine designed to compress granular materials into various tablet shapes. Ideal for the pharmaceutical, chemical, food, and electronics industries, it meets strict GMP standards with its fully enclosed stainless steel structure.
- High Precision Single-Pressure System
- Stainless Steel & Enclosed Structure
- Overload Protection Mechanism
- Adjustable Speed via Frequency Converter
- Optional PLC & Touch Screen Interface
Product Description
The ZP-17 is a new generation of high-efficiency rotary tablet press. It is primarily used for pressing pharmaceutical granules into round, irregular, and engraved tablets. The machine's design emphasizes safety and hygiene, featuring transparent plexiglass windows that allow operators to monitor the production process while maintaining a dust-free environment.
With its compact footprint and powerful pressure output, it is an excellent choice for R&D labs and medium-scale production lines. All components in contact with the material are made of high-quality stainless steel, ensuring long-term durability and easy sanitation.
Main Features
- GMP Compliant: The outer casing is made of stainless steel, and the internal turret is specially treated to maintain surface luster and prevent cross-contamination.
- Safety First: Built-in overload protection stops the machine automatically if excessive pressure is detected, protecting the punches and dies.
- Efficient Dust Removal: Integrated suction nozzles effectively remove excess powder during tableting, improving product quality and cleanliness.
- Easy Operation: Digital display for speed and pressure adjustment makes it user-friendly for operators of all skill levels.
- Versatility: Can produce round tablets, large-size tablets, and special-shaped tablets by simply changing the mold set.
Technical Parameters
| Technical Item | ZP-17 | ZP-19 |
|---|---|---|
| Number of Dies (Sets) | 17 | 19 |
| Max Pressure (kN) | 60 | 60 |
| Max Tablet Diameter (mm) | 20 | 18 |
| Max Filling Depth (mm) | 15 | 15 |
| Max Tablet Thickness (mm) | 6 | 6 |
| Turret Speed (r/min) | 0 - 30 | 0 - 30 |
| Production Capacity (pcs/h) | 30,600 | 34,200 |
| Motor Power (kW) | 2.2 | 2.2 |
| Dimensions (mm) | 615 × 890 × 1415 | 615 × 890 × 1415 |
| Machine Weight (kg) | 1000 | 1000 |
Applications
The ZP-17 Rotary Tablet Press is widely used in:
- Pharmaceutical: Pressing tablets, pills, and granules for various medications.
- Food Industry: Candy tablets, milk tablets, effervescent tablets, and seasoning blocks.
- Chemical: Catalyst tablets, detergent blocks, camphor balls, and pesticide tablets.
- Electronics: Ceramic parts, magnetic beads, and graphite components.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the ZP-17 Tablet Press perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
