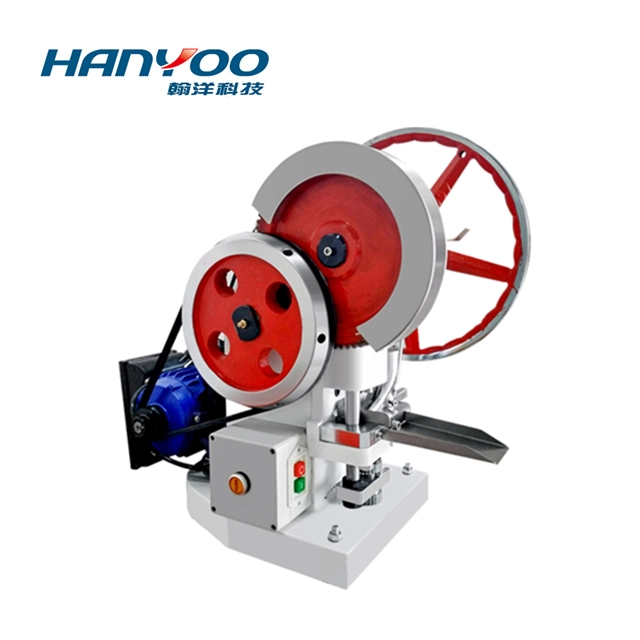

TDP Series Single Punch Tablet Press Machine
The TDP Series Single Punch Tablet Press is an ideal equipment for lab trials and small-scale production. It is used for compressing various granular materials into tablets of different shapes. Known for its compact size, simple operation, and ease of maintenance, it's a staple in pharmaceutical and healthcare research.
- Compact & Portable Desktop Design
- High Pressure (Up to 60kN for TDP-6)
- Easy to Change Molds & Adjust Parameters
- Manual or Electric Dual Operation Support
- GMP Standard Construction (SS304/SS316)
Product Description
The TDP Series is designed to press tablets from a wide range of powdered and granular materials. This single-punch machine features one set of punch and die, where the filling depth and tablet thickness can be easily adjusted. It is particularly suitable for laboratories, clinics, and small-batch production due to its versatility and high efficiency.
The machine can be operated manually (without electricity) for small trials or powered by a motor for continuous production. Its simple structure ensures high reliability and minimal downtime during mold changes, allowing for rapid development of new tablet formulations.
Main Features
- GMP Standard: All parts contacting the material are made of stainless steel or specially treated to ensure product purity and hygiene.
- Versatile Molding: Capable of producing round tablets, special-shaped tablets, and tablets with engraved logos or codes.
- Adjustable Parameters: Precise control over filling depth and tablet hardness through simple mechanical adjustments.
- Robust Design: Heavy-duty construction ensures stability during high-pressure operation, extending the service life of both the machine and the tooling.
- Low Maintenance: The straightforward mechanical design allows for easy cleaning and routine maintenance without specialized technical knowledge.
Technical Parameters
| Technical Item | TDP-1.5 | TDP-5 | TDP-6 |
|---|---|---|---|
| Max Pressure (kN) | 15 | 50 | 60 |
| Max Tablet Diameter (mm) | 12 | 16 / 18 | 25 |
| Max Filling Depth (mm) | 12 | 16 | 16 |
| Max Tablet Thickness (mm) | 6 | 6 | 6 |
| Production Capacity (pcs/h) | 4000 - 6000 | 4000 - 5000 | 2500 - 3000 |
| Motor Power (kW) | 0.37 / 0.55 | 0.75 | 1.1 |
| Dimensions (mm) | 580×450×625 | 700×400×800 | 750×400×850 |
| Machine Weight (kg) | 45 / 55 | 125 | 145 |
Applications
The TDP Series Single Punch Machine is widely used for:
- Pharmaceutical Labs: Developing new drug formulations and producing trial batches.
- Healthcare Industry: Compressing vitamins, mineral supplements, and herbal tablets.
- Chemical Industry: Producing catalyst tablets, ceramic parts, and pesticide granules.
- Food Industry: Compressing candy tablets, effervescent tablets, and seasoning blocks.
- Others: Metallurgy powder compression and electronic component manufacturing.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the TDP Tablet Press perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
