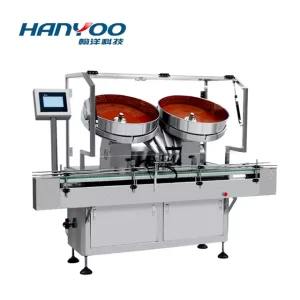

SPT-120 Automatic Sieving Counting Machine
The SPT-120 is a high-precision automatic counting and bottling machine designed for the pharmaceutical and food industries. It features a unique sieving function that removes dust and fragments before filling, ensuring product quality. Equipped with double vibration plates and dual feeders, it offers high speed and accuracy for tablets, capsules, and pills.
- Automatic Sieving Function
- Double Plate & Dual Feeder Design
- High Accuracy (>99.5%)
- Touch Screen PLC Control
- GMP Compliant (SS304)
Product Description
The SPT-120 Automatic Sieving Counting Machine is an advanced electromechanical device used for counting and bottling solid preparations. Unlike standard counters, the SPT-120 integrates a sieving mechanism that automatically filters out broken pieces and dust, making it ideal for soft candy, gummy bears, and fragile tablets.
The machine utilizes a vibration feeding system with variable frequency control to regulate speed suitable for different container types. It includes intelligent detection sensors that prevent filling if no bottle is present and automatically stop the machine in case of anomalies. Its robust stainless steel construction ensures durability and compliance with strict GMP hygiene standards.
Main Features
- Sieving Capability: Automatically screens out chips, dust, and fragments during the counting process to ensure only whole products are bottled.
- Dual Feeder System: Enhances production capacity and ensures smooth material flow using a two-stage vibration mechanism.
- Smart Protection: Features "No Bottle, No Fill" detection and auto-stop functions for material shortage or jams.
- Versatile Application: Suitable for a wide range of bottle sizes (15-120ml) and product types including hard/soft capsules, tablets, and pills.
- User Friendly: Equipped with a PLC control panel for easy setup and adjustments, with low noise operation.
Technical Parameters
| Parameter | Value |
|---|---|
| Model | SPT-120 |
| Production Capacity | 20 - 80 bottles/min |
| Bottle Specification | 15 - 120 ml |
| Compressed Air Pressure | 0.4 Mpa |
| Air Consumption | 0.002 m³/min |
| Power Supply | 1.75 KW (Voltage Customized) |
| Dimensions (L*W*H) | 1900mm × 900mm × 1800mm |
| Weight | 450 kg |
Applications
The SPT-120 Series is widely used in:
- Pharmaceutical Industry: Counting and bottling of tablets, hard capsules, and softgels requiring dust removal.
- Food Industry: Packaging of gummy bears, candy, chocolate beans, and other granular foods.
- Chemical Industry: Counting of solid chemical pellets and specialized granular products.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the Fluid Bed Dryer perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
