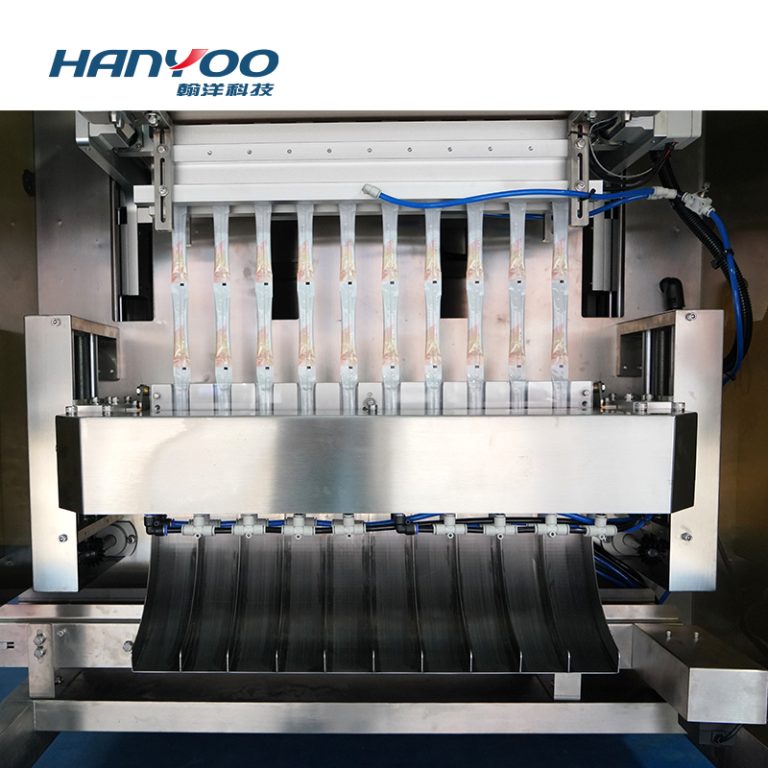

Multi-lane Vertical Series Packaging Machine
The Multi-lane Vertical Series Packaging Machine is a high-speed solution designed for the mass production of stick packs and sachets. Capable of handling liquids, powders, and granules, this machine uses multi-lane technology (4 to 12 lanes) to significantly boost output while ensuring precise filling and sealing.
- High Output: 4-12 Lanes Operation
- Versatile: Liquid, Powder, Granule Compatible
- PLC Control with Touch Screen Interface
- GMP Compliant SS304/316L Construction
- Servo Motor Film Pulling System
Product Description
The Multi-lane Vertical Series Packaging Machine represents the cutting edge of high-efficiency packaging technology. Designed to meet the high-capacity demands of the pharmaceutical, food, and daily chemical industries, this machine automatically completes the processes of measuring, bag forming, filling, sealing, cutting, and date printing.
Depending on the product type (liquid, paste, powder, or granule), the machine can be equipped with different feeding systems such as piston pumps, auger fillers, or volumetric cups. The multi-lane design allows for simultaneous packaging across multiple tracks, maximizing productivity within a compact footprint.
Main Features
- High Efficiency: Supports 4 to 12 lanes, capable of producing hundreds of sachets per minute.
- Advanced Control: Features a PLC control system and a large touch screen for easy parameter setting and operation monitoring.
- Precision Sealing: Independent PID temperature control for each lane ensures strong and airtight seals for various film materials.
- Intelligent Operation: Equipped with automatic fault diagnosis, alarm systems, and "no film/no filling" detection to reduce waste.
- Hygiene & Safety: All contact parts are made of high-quality stainless steel (SS304/SS316L), fully complying with GMP standards. Easy to clean and maintain.
Technical Parameters
| Model | Lanes | Capacity (cuts/min) | Bag Width (mm) | Bag Length (mm) | Power (kW) |
|---|---|---|---|---|---|
| HY-320 | 2-4 | 30-50 | 30-90 | 50-180 | 3.5 |
| HY-480 | 4-6 | 30-50 | 30-80 | 50-180 | 4.5 |
| HY-600 | 6-8 | 30-50 | 30-75 | 50-180 | 5.5 |
| HY-800 | 8-10 | 30-50 | 30-80 | 50-180 | 6.5 |
| HY-960 | 10-12 | 30-50 | 30-80 | 50-180 | 8.0 |
Applications
The Multi-lane Vertical Series is widely used for packaging varied materials into stick packs or sachets:
- Liquid & Paste: Ketchup, honey, shampoo, cosmetic cream, salad dressing, gel.
- Powder: Coffee powder, milk powder, medicinal powder, nutrition powder, flour.
- Granules: Sugar, salt, seasoning, desiccant, instant drink granules, pills.
- Shape Types: Suitable for back sealing stick packs, 3-side sealing sachets, and 4-side sealing sachets.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the Fluid Bed Dryer perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
