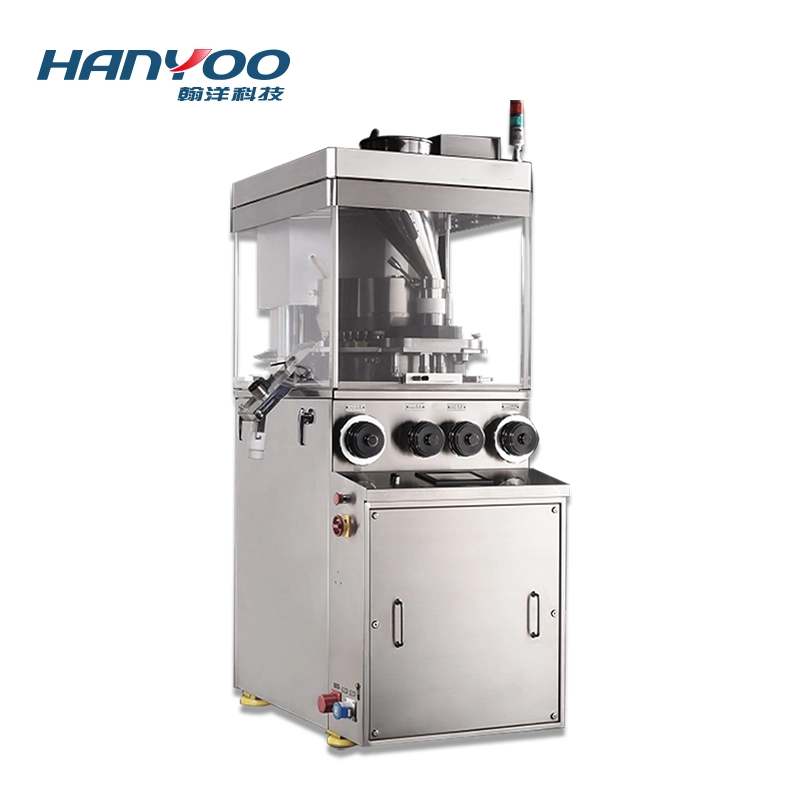

GZPT-265 High Speed Rotary Tablet Press Machine
The GZPT-265 series is a state-of-the-art high-speed rotary tablet press designed for high-volume production in pharmaceutical and food industries. It features advanced HMI & PLC control, a double-pressure system, and automatic rejection of defective tablets to ensure consistent high quality and high output.
- High Output: Up to 198,000 tablets per hour
- PLC & Touch Screen HMI for Easy Operation
- Servo-driven Force Feeder for Precise Dosing
- Automatic Oil Lubrication System
- GMP Compliant SS304/SS316 Construction
Product Description
The GZPT-265 Automatic Rotary Tablet Press Machine represents the latest technology in tablet manufacturing. This machine integrates mechanical, electrical, and pneumatic systems into one compact unit. It is designed to press granular materials into various round and irregular tablets.
The machine operates with a continuous movement where the upper and lower punches move in sync with the rotating turret. It utilizes a pre-compression and main-compression system to handle difficult materials and ensure tablet hardness. All contact parts are constructed from pharmaceutical-grade stainless steel, providing a safe and clean production environment.
Main Features
- Precision Control: Integrated PLC control with an intuitive touch-screen interface for real-time monitoring of all production parameters.
- Advanced Feeding: Equipped with a force feeder system capable of handling powders with poor fluidity, ensuring accurate filling.
- Intelligence: Automatic compensation for powder density variations and optional pressure monitoring for each individual punch.
- Quality Assurance: Features two discharge channels for qualified and defective tablets; defective tablets can be automatically rejected (Optional).
- Maintenance Friendly: Automatic oil lubrication system reduces wear, lowers noise, and extends the machine's lifespan during high-speed operation.
Technical Parameters
| Model | GZPT-16 | GZPT-23 | GZPT-30 |
|---|---|---|---|
| Punch Quantity (Sets) | 16 | 23 | 30 |
| Tooling Type | D | B | BB |
| Main Pressure (KN) | 100 | 100 | 100 |
| Pre-compression (KN) | 16 | 16 | 16 |
| Max. Tablet Dia. (mm) | 25 | 16 | 13 |
| Max. Output (pcs/h) | 100,000 | 150,000 | 198,000 |
| Power (kw) | 5.5 | 5.5 | 5.5 |
| Machine Weight (kg) | 1300 | 1300 | 1300 |
Applications
The GZPT-265 High Speed Tablet Press is widely used in:
- Pharmaceutical Industry: Mass production of medicine tablets, chewable tablets, and effervescent tablets.
- Food Industry: Candy tablets, milk tablets, compressed sugar, and nutritional supplements.
- Chemical Industry: Detergent blocks, catalytic tablets, and pesticide tablets.
- Others: Salt tablets, battery components, and various industrial powdered parts.
Customization Service
At Hanyoo, we understand that every production line is unique. We provide comprehensive customization services to ensure the Tablet Press Machine perfectly fits your facility and production requirements.
Mold & Tooling
Customized punch and die designs for round, irregular, or logo-engraved tablets to meet your branding needs.
Layout & Integration
We design the machine layout to fit your factory space and integrate seamlessly with your existing production line.
Voltage & Power
Electrical components tailored to your local voltage standards (220V/380V/415V, 50Hz/60Hz) for global compatibility.
GMP Documentation
Full set of validation documents (DQ, IQ, OQ, PQ) and material certificates provided for GMP compliance.
